Mobile Battery Energy Storage

Battery Energy Storage solutions reduce fuel consumption and CO2 emissions. A Battery Energy Storage system allows the storage of energy from multiple sources: generator, solar or the grid. Energy can be redistributed, at a later time, to a site that needs power.

Download

Links

Request a quote

Click down to request a quotation

Request

$rec.get('vw_pdm_prod_detail.prod_image_kid.label')

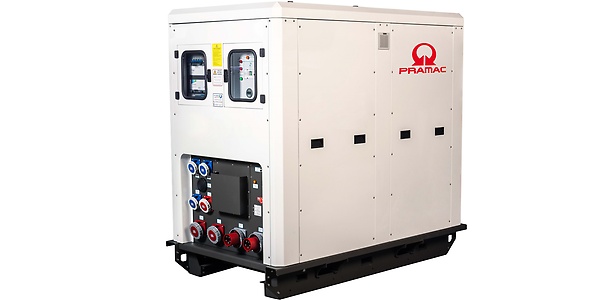

OFF GRID LX 45/90

Download video & documents

VIDEO
VIDEO
VIDEO TUTORIAL
VIDEO TUTORIAL
USE AND MAINTENANCE MANUAL
USE AND MAINTENANCE MANUAL [EN]
FLYER
FLYER
BROCHURE
BROCHURE

Output Specifications

NOMINAL OUTPUT POWER (CONTINUOUS)
kVA
45
PEAK OUTPUT POWER (5S)
kW
90
VOLTAGE
V
400/230
FREQUENCY
Hz
50
PHASE (S)
3
REFERENCE AMBIENT TEMPERATURE
°C

Battery specifications

BATTERY (TYPE)
Gel lead acid OPzV-S
BATTERY RATED VOLTAGE
VDC
50
DEPTH OF DISCHARGE (DOD)
%
BATTERY DESIGN LIFE
cycles
USABLE ENERGY @ DOD / AC SIDE
kWh

Overall Dimensions

INSTALLATION DRAWING
91541
