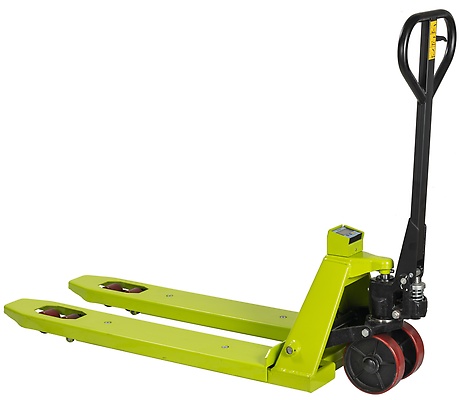

  • SCALE PALLET TRUCK - SIMPLE WEIGHING SYSTEM

  •
Description
1.3 Drive Manual
1.4 Operator type Pedestrian
1.5 Load capacity Q

Kg

2000
Dimensions
4.4 Lift height h3

mm

115
4.19 Overall lenght l1

mm

1596
4.21 Overall width b1

mm

555
4.22 Fork dimensions - Width e

mm

180
4.22 Fork dimensions - Lenght l

mm

1185
4.25 Distance between fork arms b5

mm

555
4.34 Aisle width Ast

mm

1851
4.35 Turning radius Wa

mm

1426
Scale
Accuracy

%

0.1
Shear-beam load cells Q.ty 4
Division

Kg

1
